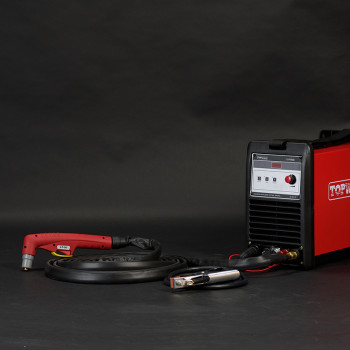

Inverter welding machine Plasma cutter 40A

FOB Price: US $2.01 - 100000 piece

group name: All products

Min Order: 1 piece

brand name: TOPWELL

model: CUT-40Di/40MV

Nearest port for product export: Shanghai/Ningbo Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T

Export mode: Have the independent export and import right

update time: Fri, 22 Nov 2024 06:56:38 GMT

contact supplier

Paramtents

Rated Input Voltage 1PH ~ 230V ±15%
Rated Output 40A/96V
Max Open Circuit Voltage 5KVA
Effiency 80%
Warranty 1 year warranty
Dimension 450*210*350mm
Weight 12KG

Packging & Delivery

52cm x28cm x43cm
Min Order1 piece

Briefing

portable fast and quality cutting Plasma Cutter 40 CUT-40

Detailed

/FEATURES

Quick Specs

Light Industrial Application:: Home workshop; Metal fabrication workshops; Light fabrication; Repair and maintenance

Processes:: Mild Steel; Stainless Stee; Copper; Aluminum

Input Power:230V

or 115/230V, 1-Phase

Amperage Range: 15-40A

Rated Output at 40℃ (104℉:

40A at 96V @60% Duty Cycle

Weight:12KG

General View of Control Panel

Control Panel Parameter Values
1.Ammeter/Voltmeter Display
2.Encoder Control
3.Gas test
4.Collective interference signal light
5.Power LED

CUT PERFORMANCE

Big cutting power in a small package - the
industry's most portable and powerful
40-amp plasma cutter offers 10mm.
mild steel cutting. The unit offers easy
connection to 115V or 230V input with
Auto-Line technology and MVP Adapters.

Rated Cut @	Maximum Cut @	Sever Cut @
0.50 m/min	0.25 m/min	0.12 m/min

/SPECIFICATIONS

Technical specifications

Item No	CUT-40Di	CUT-40MV
Rated Input Voltage	1PH ~ 230V ±15%	1PH ~ 115/230V ±15%
Max. Load Power Capacity	6.25KVA	5KVA
Rated Duty Cycle(40℃) 60%	40A/100V	40A/96V
100%	30A/95V	30A/92V
Welding Current/Voltage Range	20A/90V~40A/96V	18A/88V~40A/96V
Open Circuit Voltage	260V~290V	260V~290V
Power Factor	0.8	0.73
Efficiency	80%	80%
Required Air Pressure	0.3~0.5MPa	0.3~0.5MPa
Gas Pro-flow/Retard Time	Preset	Preset
Quality Cutting Thickness(500mm/min)	10mm	10mm
Severance Cutting Thickness(125mm/min)	18mm	18mm
Dimension (LxWxH)	410X185X310mm	410X185X310mm
Weight (KG)	12 KG	12 KG

/ACCESSORIES
For Standard accessories
PLASMA torch: HTM50-CB
Earth clamp
For Optional accessories
PLASMA torch: Trafimet S45
PLASMA torch: PT40
/VIDEO

High quality cutting performance.
Accessories:Trafimet CB-50 torch
/DOCUMENTS
CUT-40Di/40MV
operation instructions
