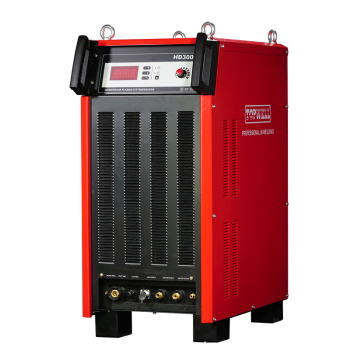

HD300 heavy duty industrial 300 amps plasma cutter CNC power source

FOB Price: US $2.01 - 100000 piece

group name: All products

Min Order: 1 piece

brand name: TOPWELL

model: HD300

Nearest port for product export: Shanghai/Ningbo Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T

Export mode: Have the independent export and import right

update time: Thu, 21 Nov 2024 20:48:43 GMT

contact supplier

Paramtents

Rated Input Voltage 3PH ~ 400V ±15%
Rated Output 200V
Open Circuit Voltage 430V
Effiency 85%
Max. Load Power Capacity 75KVA
Rated output voltage 50~200VDC
Max output current 300A
Warranty 3 year warranty
Dimensions 960X420X1100MM
Weight 235KG

Packging & Delivery

156cm x70cm x183cm
Min Order1 piece

Briefing

HD300 heavy duty industrial 300 amps plasma cutter CNC power source

Detailed

DETAILS

HD300W

Heavy Duty, High Performance, Long Consumable Life Plasma Cutting System

Cutting Capacity

Mild Steel Cut Capacity	Thickness
Dross free*	32mm
Production pierce	38mm
Maximum cutting capacity	80mm

High Performance Cutting

• HD300W plasma cutting system cuts fine-feature parts with superior quality and consistency, eliminating the cost of secondary operations.

• The focused plasma arc for more powerful precision cutting up to 38mm on Mild Steel and 32mm on Stainless steel and Aluminum.

• With water spray cutting process, the stainless steel and aluminum cutting will be less warping and produce a small heat-affected zone.

Water Mist Secondary (WMS) Technology

During the cutting process, the water in the shield stream is divided into its principal components—hydrogen and oxygen. The hydrogen creates a reduced atmosphere in the cut zone, isolating it from contaminants at a much lower cost per metre than other cutting processes. Since it uses normal tap water, Water Mist Secondary also reduces production costs and keeps overall energy usage to a minimum.

Long Consumable Life & Fast Cutting Speed

Long Consumable Life

• 12mm mild steel；

• 200A Air/Air；

• 20s duration;

• The number of consumable starts can reach more than 500 times (ISO9013 Range 2).

Fast Cutting Speed

The cutting speed of dross free can reach 1200mm/min for 20mm mild steel.

Bevel Cutting Technology

Bevel Cutting Technology is a performance application for mild steel. Factory tested and easily implemented, it takes the guesswork out of the plasma bevel-cutting process. With Bevel Cutting Technology, setups for new jobs are quick and results are accurate and consistent.

• 1 iteration

• Using True Bevel

• Acceptable part and ready to start production

Refined Torch System

• Double air system torch;

• Nozzle cooling for increased electrode life and reduced operating costs;

• Work with TOPWELL high voltage power source to shift the cutting limitation.

VIDEO

SPECIFICATIONS

Machines

Product Name	HD300W
Cut angle（ISO 9013 range*）	2
Weldability	Ready to weld
Plasma gas	Air
Shield gas	Air; Water Spray

Product Weights & Dimensions

Dimensions(LWH)	1300800580mm
Net Weight	235KG

Basic Specification

Input Voltage	380V/400V, 3PH, 50/60Hz
Input Power	75KVA
Rated output voltage	50~200VDC
Rated Output(40℃) 100%	300A
Open circuit voltage (OCV)	430VDC

* ISO 9013 is a standard that defines cut quality of thermally cut parts. The lower the range (range 1 is the lowest), the smaller the angle on the cut face. Cut angle in range 4 is better than in range 5.
