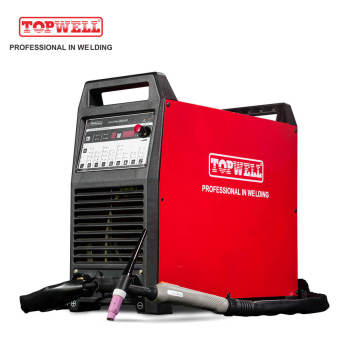

AC DC Pulse TIG Welder ALUTIG-250HD for aluminum welder
- group name
- All products
- Min Order
- 1 piece
- brand name
- TOPWELL
- model
- ALUTIG-250HD
- Nearest port for product export
- Shanghai/Ningbo Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T
- Export mode
- Have the independent export and import right
- update time
- Wed, 04 Dec 2024 01:55:26 GMT
Paramtents
Rated Input Voltage 1PH ~ 230V ±15%
Rated Output 250A/20V
Max. Load Power Capacity 7.81KVA
Effiency 80%
Open Circuit Voltage 70V~80V
Power Factor 0.8
Color Red
Warranty 1 year warranty
Dimension 540X240X480mm
Weight 23KG
Packging & Delivery
- 63cm x33cm x58cm
-
Min Order1 piece
Briefing
Detailed
-
ALUTIG-250HD
All TIG Functions inone package
-
Application:
Light Industrial Application:
Metal Fabrication
Maintenance and Repair
Auto Body
Light Industrial -
Processes:
DC TIG (GTAW)
AC TIG (GTAW)
MIX TIG (GTAW)
Stick (SMAW)
-
Input Power: 230V, 1-Phase
Amperage Range: 5-200A
Rated Output at 40℃ (104℉):
200A at 18V @60% Duty Cycle
Weight: 23kg
PULSED TIG
Conventional Pulsed TIG
Typically from 0.2 to 10 PPS. Provides a heating and cooling effect on the weld puddle and can reduce distortion by lowering the average amperage. This heating and cooling effect also produces a distinct ripple pattern in the weld bead. The relationship between pulse frequency and travel speed determines the distance between the ripples. Slow pulsing can also be coordinated with filler metal addition and can increase overall control of the weld puddle.
High Speed Pulsed TIG
In excess of 40 PPS, Pulsed TIG becomes more audible than visible—causing increased puddle agitation for a better as-welded microstructure. Pulsing the weld current at high speeds — between a high Peak and a low Background amperage — can also constrict and focus the arc. This results in maximum arc stability, increased penetration and increased travel speeds.
AC waveshape options
-
Soft Square Wave
-
Soft Square Wave
-
Soft Square Wave
-
Soft Square Wave
MIX TIG CONTROL
Features of MIX TIG:
The AC current can get a very good clearance, and DC current can get a deeper penetration.
Use the MIX TIG we can get an excellent Arc Concentration,can be carried out the excellent welding performance from thin to thick plate.
1) Nice weld appearance, deep penetration.
2) Excellet Arc Concentration..
3) Substantially reduce the electrode consumption.
MIX TIG Frequency (Hz):
the cycle time of MIX
TIG in 1 second. Adjustable range: 0.1-10Hz.
MIX TIG Balance (DC) %:
DC Balance (%) = (tad/Tmix) x 100
AC Waveshape Controls
Frequency control
Controls the width of the Controls the width of the arc cone.
Increasing the AC Frequency provides a more focused arc with increased directional control.
Note: Decreasing the AC Frequency softens the arc and broadens the weld puddle for a wider weld bead.
AC Balance Control
Controls arc cleaning action. Adjusting the % EN of the AC wave controls the width of the etching zone surrounding the weld.
Note: Set the AC Balance control for adequate arc cleaning action at the sides and in front of the weld puddle. AC Balance should be fine tuned according to how heavy or thick the oxides are.
Amplitude Control
Adjusts the ratio of EN to EP amperage to precisely control heat input to the work and the electrode.
EN amperage controls the level of penetration, while EP amperage dramatically effects the arc cleaning action along with the AC Balance control.
-
-
Item No ALUTIG-250HD Rated Input Voltage 1PH ~ 230V ±15% Max. Load Power Capacity TIG: 7.81KVA MMA: 8.75KVA Rated Duty Cycle(40℃) 60% TIG: 250A/20V MMA: 200A/28V 100% TIG: 200A/18V MMA: 160A/26.4V Welding Current/Voltage Range TIG: 5A/10.2V~250A/20V MMA: 20A/20.8V~100A/28V Open Circuit Voltage 70V~80V Power Factor 0.8 Efficiency 80% TIG Pulse Peak Current 5A~250A TIG; Pulse Pulse Frequency 0.2Hz~200Hz TIG; Pulse Pulse Width (Ratio) 1~100% TIG; AC TIG AC Frequency Range 20Hz~250Hz TIG; AC TIG AC Clean Width (AC Balance) +40~-40 TIG; AC TIG AC Clean Ratio (AC Bias) % +30~-50 TIG; MIX TIG MIX Frequency 1Hz~5Hz TIG; MIX TIG DC Balance (%) 20~80 TIG; Arc-starting Current 5A~250A TIG; Crater-filling Current 5A~250A TIG; Current Up-slope Time 0.1S~15S TIG; Current Down-slop Time 0.1S~15S TIG; Pre-Gas Time 0.1S~15S TIG; Flow-Gas Time 0.1S~15S TIG; Spot Arc Time 0.1S~10S MMA Arc Force 10A~200A MMA Hot Start Time 0.1~3S MMA Hot Start Current 10A~200A Dimension (LxWxH) 540x240x480mm Weight 23KG Water-cooling Unit: WC-100 Operating Voltage 230V 50/60Hz Rated Power 260W Cooling Power 1.5KW(1L/MIN) Maximum Pressure 0.3MPA/60HZ Recommended Cooling Liquid 20%~40% ethanol/water Tank Volume 6.5L - For Standard accessories
TIG torch:TIG-26
Electrode holder with cable 2M
Earth clamp with cable 2MFor Optional accessories
BINZEL ABITIG ® GRIP 26
Argon gas regular
Trolley:WT-100
Foot Pedal
Water-cooling unit: WC-100
-
-
Q:Are you a factory or a trading company?
A: We are factory with more than 10 years manufacturing experience and we provide perfect OEM and after-sale service.
Q:How can I pay my order?
A: We accept T/T, Western Union, Alibaba Trade Assurance payments. For those orders less than 1000USD, we accept PayPal to pay.
Q:How about your warranty?
A: We offer 3-year product life guarantee ,and a generous 1 year warranty on al purchases that begins with the bill of lading.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Q:How can I get the quotation?
A: We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price,please send the message on trade management or call us directly
