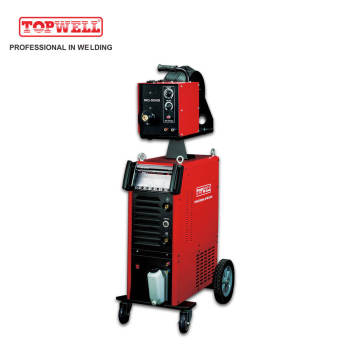

arc welders mig mag 500a mig welder mig welding machine mig-500hd
- group name
- All products
- Min Order
- 1 piece
- brand name
- TOPWELL
- model
- MIG-500HD
- Nearest port for product export
- Shanghai/Ningbo Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T
- Export mode
- Have the independent export and import right
- update time
- Tue, 04 Nov 2025 12:38:22 GMT
Paramtents
Rated Input Voltage 3PH ~ 400V +15%
MAX.Load Power Capacity 26.99KVA
Rated Output 500A/39V
Max Open Circuit Voltage 70V~80V
Effiency 85%
Wire-feed Mechanism 4 Rollers
Wire Feed Speed Range 0-25m/min
Warranty 1 year warranty
Dimension 960x420x1400mm
Weght 80kg
Packging & Delivery
- 96cm x47cm x109cm
-
Min Order1 piece
Briefing
Detailed
-
MIG-500HD
Synergic, MIG Welder
-
Application:
Metal fabrication workshops
Shipyards and offshore industry
Chemical and process industry
Steel structure workshops -
Processes:
MIG
MAG
Flux-Cored
MMA(Stick) -
Input Power: 400V, 3-Phase
Rated Output at 40°C (104°F):
500A at 39V @60% Duty Cycle
Weight: 80KG
PULSE MIG
Pulsed MIG varies weld current between peak (high heat) and background (lowheat) current to provide better control of heat input, which minimizes warping and burnthrough on thin materials. Pulsed MIG also enables flat,horizontal, verticalup, or overhead welding without a slag system.Optimized GMAW-P waveforms are readily available to use on aluminum,carbon steel,high strength low alloy steel, stainless steel,and nickel alloys.
The advantage of Wave-form Control System
The latest technology of Waveform Control System, can perfectly control the output of welding power and get the precision Arc performance. The wire melting droplet transfer cycle is very clear, the welding beam is very clean and very few spatters during welding.
General View of Control Panel
1.SELECT the Memory channel
2.OPEN the parameter of selected memory channel
3.STORE the setting to Memory channel
4.Push to Check Gas
5.Welding Process
MMA,
MAG(CO2)for Carbon steels
MAG(CO2 /Ar) for Carbon steels
MIG (Argon) for Stainless steels6.Pulse MIG: ON/OFF
7.Synergic function ON/OFF
8.Synergic setting (select wire diameter)
9.Arc Crater: ON/OFF
10.Select to adjust the Arc Crater Current
11.Select to adjust the Arc Crater Voltage
12.Arc Dynamic controls
Classical MIG/MAG
In classic mode, MIG / MAG welding is carried out in inert gas with automatic wire feed.With this mode, a high welding speed and excellent quality are offered without any extra costs in the processing of ferrous metals, as well as various steels.
-
-
Item No MIG-500HD Rated Input Voltage 3PH ~ 400V ±15% Max. Load Power Capacity 26.99KVA Rated Duty Cycle(40℃) 60% MIG: 500A/39V MMA: 500A/40V 100% MIG:350A/31.5V MMA:350A/34V Welding Current/Voltage Range MIG: 10A/14.5V~500A/39V MMA:10A/20.4V~500A/40V Open Circuit Voltage 70V~80V Power Factor 0.85 Efficiency 85% Pre-Gas Time Preset Flow-Gas Time Preset Wire-feed Mechanism 4 Rollers Wire-feed Speed Range 0~25 m/min Wire Spool Capacity 300mm (15kg) Filler Wires Ø (mm) Fe, Ss: 0.8~1.6 mm Dimension 960X420X1400mm Weight 80KG Water-cooling Unit: WC-150 Operating Voltage 230V 50/60Hz Rated Power 260W Cooling Power 1.5KW(1L/MIN) Maximum Pressure 0.3MPA/60HZ Recommended Cooling Liquid 20%~40% ethanol/water Tank Volume 6.5L - For Standard accessories
MIG torch:MIG-24
Earth clamp
For Optional accessories
BINZEL MB EVO PRO 501D
Argon gas regular
or co 2 gas regular with heater
-
-
Q:Are you a factory or a trading company?
A: We are factory with more than 10 years manufacturing experience and we provide perfect OEM and after-sale service.
Q:How can I pay my order?
A: We accept T/T, Western Union, Alibaba Trade Assurance payments. For those orders less than 1000USD, we accept PayPal to pay.
Q:How about your warranty?
A: We offer 3-year product life guarantee ,and a generous 1 year warranty on al purchases that begins with the bill of lading.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Q:How can I get the quotation?
A: We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price,please send the message on trade management or call us directly
