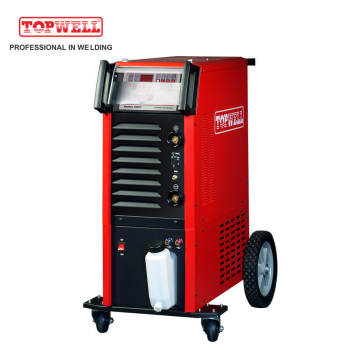

Reliable and powerful heavy industrial DC tig welding equipment PROTIG-500CT

Reliable and powerful heavy industrial DC tig welding equipment PROTIG-500CT

group name: All products

Min Order: 1 piece

brand name: TOPWELL

model: PROTIG-500CT

Nearest port for product export: Shanghai/Ningbo Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T

Export mode: Have the independent export and import right

update time: Sat, 23 Nov 2024 16:46:59 GMT

contact supplier

Paramtents

Rated Input Voltage 3PH ~ 400V ±15%
Rated Output 500A/30V
Max Open Circuit Voltage 20.76 KVA
Welding Current/Voltage Range 3A/10.1V~500A/30V
Open Circuit Voltage 70V~80V
Effiency 85%
Color Red
Warranty 1 year warranty
Dimensions 960X420X900mm
Weight 70kg

Packging & Delivery

99cm x48cm x90cm
Min Order1 piece

Briefing

PROTIG-500CT, Reliable and powerful DC TIG equipment.

Detailed

PROTIG-500CT

Refined TIG welding for industrial applications
- Application:

  Metal fabrication workshops
  Shipyards and offshore industry
  Chemical and process industry
  Steel structure workshops
- Processes:

  DC TIG
  Stick (SMAW)
- Input Power: 340-460V, 3-Phase

  Rated Output at 40℃ (104℉):
  500A at 30V @60% Duty Cycle
  Weight: 70kg
PULSED TIG

Conventional Pulsed TIG

Typically from 0.2 to 10 PPS. Provides a heating and cooling effect on the weld puddle and can reduce distortion by lowering the average amperage. This heating and cooling effect also produces a distinct ripple pattern in the weld bead. The relationship between pulse frequency and travel speed determines the distance between the ripples. Slow pulsing can also be coordinated with filler metal addition and can increase overall control of the weld puddle.

High Speed Pulsed TIG

In excess of 40 PPS, Pulsed TIG becomes more audible than visible—causing increased puddle agitation for a better as-welded microstructure. Pulsing the weld current at high speeds — between a high Peak and a low Background amperage — can also constrict and focus the arc. This results in maximum arc stability, increased penetration and increased travel speeds.

Item No		PROTIG-500CT
Rated Input Voltage		3PH ~ 400V ±15%
Max. Load Power Capacity		TIG: 20.76KVA
		MMA: 19.93KVA
Rated Duty Cycle(40℃) 60%		TIG: 500A/30V
		MMA: 400A/36V
100%		TIG: 400A/26V
		MMA: 315A/32.6V
Welding Current/Voltage Range		TIG:3A/10.1V~500A/30V
		MMA: 20A/20.8V~400A/36V
Open Circuit Voltage		70V~80V
Power Factor		0.85
Efficiency		85%
TIG	Pulse Frequency	0.2Hz~200Hz
	Pulse Width (Ratio)	1~100%
	Arc-starting Current	5A~500A
	Crater-filling Current	5A~500A
	Current Up-slope Time	0.1S~15S
	Current Down-slop Time	0.1S-15S
	Pre-Gas Time	0.1S-15S
	Flow-Gas Time	0.1S-15S
	Spot Arc Time	0.1S-10S
MMA	Arc Force	10A~315A
	Hot Start Time	0.1-3S
	Hot Start Current	10A~400A
Dimension (LxWxH)		960X420X900mm
Weight (KG)		70 KG

Water-cooling Unit: WC-150

Operating Voltage	230V 50/60Hz
Rated Power	260W
Cooling Power	1.5KW(1L/MIN)
Maximum Pressure	0.3MPA/60HZ
Recommended Cooling Liquid	20%~40% ethanol/water
Tank Volume	6.5L

For Standard accessories





TIG torch:TIG-12





Electrode holder with cable 2M
Earth clamp with cable 2M

For Optional accessories





BINZEL ABITIG ® GRIP 18





Argon gas regular





Trolley:WT-100





Foot Pedal





Water-cooling unit: WC-150
Q:Are you a factory or a trading company?

A: We are factory with more than 10 years manufacturing experience and we provide perfect OEM and after-sale service.

Q:How can I pay my order?

A: We accept T/T, Western Union, Alibaba Trade Assurance payments. For those orders less than 1000USD, we accept PayPal to pay.

Q:How about your warranty?

A: We offer 3-year product life guarantee ,and a generous 1 year warranty on al purchases that begins with the bill of lading.

Q: Do you have a CE certificate?

A: For every model of machine, it has a CE certificate.

Q:How can I get the quotation?

A: We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price,please send the message on trade management or call us directly
