heavy duty mig mag mig500 hd pulse welding machine
- group name
- All products
- Min Order
- 1 piece
- brand name
- TOPWELL
- model
- MIG-500HD
- Nearest port for product export
- Shanghai/Ningbo Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T
- Export mode
- Have the independent export and import right
- update time
- Thu, 21 Nov 2024 21:07:43 GMT
Paramtents
Rated Input Voltage 3PH ~ 400V +15%
MAX.Load Power Capacity 26.99KVA
Rated Output 500A/39V
Max Open Circuit Voltage 70V~80V
Effiency 85%
Wire-feed Mechanism 4 Rollers
Wire Feed Speed Range 0-25m/min
Warranty 1 year warranty
Dimension 800x280x767mm
Weght 65kg
Packging & Delivery
- 80cm x28cm x77cm
-
Min Order1 piece
Briefing
Detailed
-

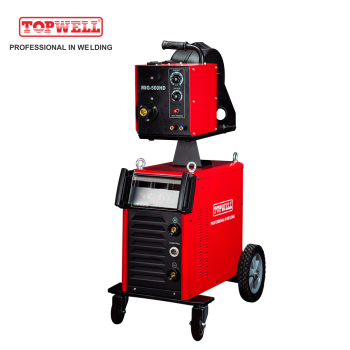

MIG-500HD
The choice of reliability, powerful and easy operation
-
Application:
Metal fabrication workshops
Shipyards and offshore industry
Chemical and process industry
Steel structure workshops -
Processes:
MAG (GMAW)
MIG (GMAW)
Flux-Cored
Stick (SMAW) -
Input Power: 380V, 3-Phase
Rated Output at 40°C (104°F):
500A at 39V @60% Duty Cycle
Weight: 65KG
RELIABILITY
MIG-500HD is based on the latest inverter technology and uses the stable IGBT module. Besides, the structure is tidy and clear, every components are at the right place. It will keep the cooling wind pass through every parts and increase their stability and service life greatly.
POWERFUL
When welding MIG, a high peak current can not only offer a better welding experience, but also increase the deposition rate. Our MIG-500HD is aim to do that, so we design the MIG-500HD powerful than ever.
GENERAL VIEW OF CONTROL PANEL
1.Volmeter.
2.Ampmeter.
3.Protection/damage pilot lamp.
4.Power/work pilot lamp.
5.Crater-filler Voltage regulator.
6.Crater-filler Current regulator (MIG);
or Welding Current regulator(MMA).
7.Arc Force regulator.
8.Crater ON/OFF mode selection (2T/4T).
9.Gas-test ON/OFF selection.
10.MMA/MIG weldingmode selection.
-
-
Item No MIG-500HD Rated Input Voltage 3PH ~ 400V ±15% Max. Load Power Capacity 26.99KVA Rated Duty Cycle(40℃) 60% MIG: 500A/39V MMA: 500A/40V 100% MIG: 350A/31.5V MMA: 350A/34V Welding Current/Voltage Range MIG: 10A/14.5V~500A/39V MMA: 10A/20.4V~500A/40V Open Circuit Voltage 70V~80V Power Factor 0.85 Efficiency 85% Pre-Gas Time Preset Flow-Gas Time Preset Wire-feed Mechanism 4 Rollers Wire-feed Speed Range 0~25m/ min Wire Spool Capacity 300mm (15kg) Filler Wires Ø (mm) Fe, Ss: 0.6~1.6 mm Dimension: 800x280x767mm Weight 65KG - For Standard accessories
MIG torch:MIG-24
Earth clamp
For Optional accessories
BINZEL MB EVO PRO 501D
Argon gas regular
or CO₂ gas regular with heater
-
-
Q:Are you a factory or a trading company?
A: We are factory with more than 10 years manufacturing experience and we provide perfect OEM and after-sale service.
Q:How can I pay my order?
A: We accept T/T, Western Union, Alibaba Trade Assurance payments. For those orders less than 1000USD, we accept PayPal to pay.
Q:How about your warranty?
A: We offer 3-year product life guarantee ,and a generous 1 year warranty on al purchases that begins with the bill of lading.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Q:How can I get the quotation?
A: We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price,please send the message on trade management or call us directly
