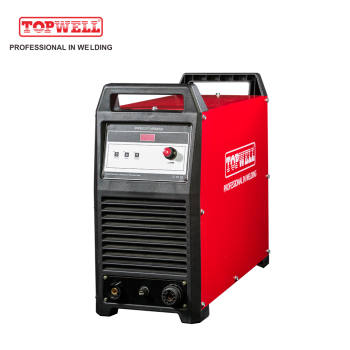

portable workshop cnc ready 1PH 220V plasma cutter topwell PROCUT-45MAX

group name: All products

Min Order: 1 piece

brand name: TOPWELL

model: PROCUT-45MAX

Nearest port for product export: Shanghai/Ningbo Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T

Export mode: Have the independent export and import right

update time: Thu, 21 Nov 2024 21:30:36 GMT

contact supplier

Paramtents

Rated Input Voltage 3PH ~ 400V ±15%
Rated Output Currant 30-45A
Rated Output Voltage 145V
Effiency 85%
Max. Load Power Capacity 8.16KVA
Power supply type Inverter-IGBT
Torch PX62/6m PXM62/7.5m
Warranty 1 year warranty
Dimensions 560X230X480mm
Weight 22KG

Packging & Delivery

63cm x33cm x54cm
Min Order1 piece

Briefing

portable workshop cnc ready 1PH 220V plasma cutter topwell PROCUT-45MAX

Detailed

Overview

Technical specifications

Torch & Consumables

Accessories

Videos & Documents

ProCUT-45MAX

Recommend for Hand-held cutting 16mm and CNC up to 8mm

For Mild Steel Cutting: Thickness: Cut Speed:

Dross Free(CNC) 8mm 900mm/min

Pierce* 12mm

Recommended 16mm 500mm/min

Severance(Hand Cutting) 29mm 125mm/min

ADVANTAGES

Powerful Output

Powerful output-40A@60%, at 40℃(104℉), the quality cutting capacity is up to 16mm(manual) and 8mm(CNC dross-free);

High output voltage-145VDC ensures a long plasma arc length;

Light weight

Portability-small size and light weight allow for easy mounting in any application;

Maximum productivity

Maximum productivity-Finish jobs faster with cut speeds two and three times greater than other traditional cutting process;

Superior cut performance-Significantly save a lot of time on secondary operations;

Long-life and reliability

TOPWELL's long-life consumable-deliver operating cost that is less than half the competition;

TOPWELL certified reliability-ensures performance in the most demanding environment.

SPECIALLY DESIGNED TORCH

*Work with TOPWELL high voltage power source to shift the cutting limitation

Plasma Torch: PX62/PXM62

Technical Data

Amps	50-80A
Duty Cycle	80A/60%
Gas	AIR/O₂
Pressure	5.0~5.5BAR
Gas Flow	160 It/min.
Pilot Arc	Electrode to Tip
Post Flow Time	80 sec.
Ignition	Without High Frequency

Single air-system with shield gas

*Work with TOPWELL high voltage power source to shift the cutting limitation

Torch consumable parts

Amperage	Nozzle	Shield	Retaining cap	Electrode	Swirl ring	Shield cap	Torch body
20A	TP080207	TP0803	TP0806	TP0801	TP0804	TP0808	TP0709
30A	TP080208
40A	TP080209
50A	TP080210
60A	TP080211

Item No	ProCUT-45MAX
Input voltages (±15%)	220V, 1PH, 50/60Hz
Max. Load Power Capacity	8.16KVA
Rated output voltage	145VDC
Max output current	45A
Open circuit voltage (OCV)	300VDC
Duty cycle rating 40°C(105°F)	45A@60%
Operating temperature	-10℃~40℃
Dimensions	540x240x480mm
Weight	22KG
Torch	PX62/6m PXM62/7.5m
Recommended gas inlet flow rate/pressure	CUTTING： 400 scfh, 6.7 scfm @ 85 psi
Certifications	CE, RoHS
Warranty	3-Years warranty for power source
