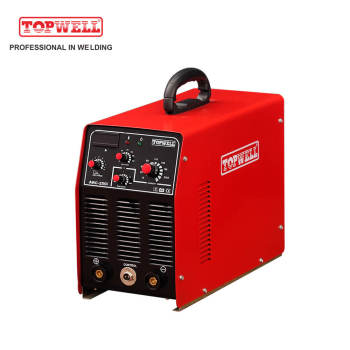

ARC-250i Portable and Powerful Stick Welder
- group name
- Stick Welders
- Min Order
- 1 piece
- brand name
- TOPWELL
- model
- ARC-250i
- Nearest port for product export
- Shanghai/Ningbo Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T
- Export mode
- Have the independent export and import right
- update time
- Thu, 21 Nov 2024 18:06:33 GMT
Packging & Delivery
-
Min Order1 piece
Briefing
The ARC-250i is portable design and it is very powerful which is 200A@60% duty cycle.
Detailed
DETAILS
Powerful, Portable, Vertical-Down Welding
ARC-250i
Portable Design - easy to carry and move to different sites.
Powerful Output - 250A @ 60% Duty Cycle.
Vertical Down Welding - suitable for pipe welding.
Hot Start - start the electrode easily.
Arc Force - adjust the arc to aggressive digging arc.
Hot Start
Hot start Function reliably ignites the electrode and melts perfectly to ensure the best quality even at the start of the seam.This solution makes lack of fusion and cold welds a thing of the past and significantly reduces weld reinforcement. Adjust the hot start current here and the time here.
Arc Force
During the welding process, arcforce prevents the electrode sticking in the weld pool with increases in current. This makes it easier to weld large-drop melting electrode types at low current strengths with a short arc in particular.
SPECIFICATIONS
Machines
|
Product Name
|
ARC-250i
|
|
Machines Processes
|
Stick (SMAW)
|
Product Weights & Dimensions
|
Dimensions(L*W*H)
|
410x190x305mm
|
|
Net Weight
|
16KG
|
Basic Specification
|
Input Voltage
|
1PH ~ 230V ±15%
|
|
Input Power
|
8.3KVA
|
|
Output Range
|
10A/20.4V~250A/30V
|
|
Rated Output(40℃) 60%
|
250A/30V
|
Polarity | DC |
Application
Typical Application |
Construction Construction & Field Erection Maintenance & Repair Repair Welding Structural Fabrication Structural Welding |
