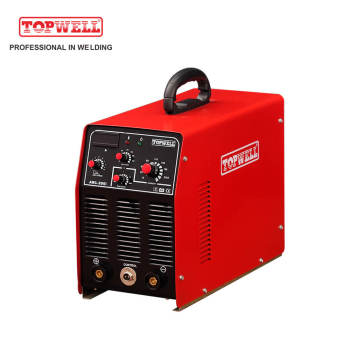

ARC-200i Portable and Powerful Stick Welder

group name: Stick Welders

Min Order: 1 piece

brand name: TOPWELL

model: ARC-200i

Nearest port for product export: Shanghai/Ningbo Port

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T

Export mode: Have the independent export and import right

update time: Thu, 21 Nov 2024 17:42:08 GMT

contact supplier

Paramtents

Input Voltage 1PH ~ 230V ±15%
Rated Output(40℃) 60% 200A/28V

Packging & Delivery

75cm x36cm x71cm
Min Order1 piece

Briefing

The ARC-200i is portable design and it is very powerful which is 200A@60% duty cycle.

Detailed

DETAILS

Powerful, Portable, Vertical-Down Welding

ARC-200i

Portable Design - easy to carry and move to different sites.

Powerful Output - 200A @ 60% Duty Cycle.

Vertical Down Welding - suitable for pipe welding.

Hot Start - start the electrode easily.

Arc Force - adjust the arc to aggressive digging arc.

Hot Start

Hot start Function reliably ignites the electrode and melts perfectly to ensure the best quality even at the start of the seam.This solution makes lack of fusion and cold welds a thing of the past and significantly reduces weld reinforcement. Adjust the hot start current here and the time here.

Arc Force

During the welding process, arcforce prevents the electrode sticking in the weld pool with increases in current. This makes it easier to weld large-drop melting electrode types at low current strengths with a short arc in particular.

SPECIFICATIONS

Machines

Product Name	ARC-200i
Machines Processes	Stick (SMAW)

Product Weights & Dimensions

Dimensions(LWH)	410x190x305mm
Net Weight	14KG

Basic Specification

Input Voltage	1PH ~ 230V ±15%
Input Power	7.1KVA
Output Range	10A/20.4V~200A/28V
Rated Output(40℃) 60%	200A/28V
Polarity	DC

Application

Typical Application

Construction

Construction & Field Erection

Maintenance & Repair

Repair Welding

Structural Fabrication

Structural Welding
