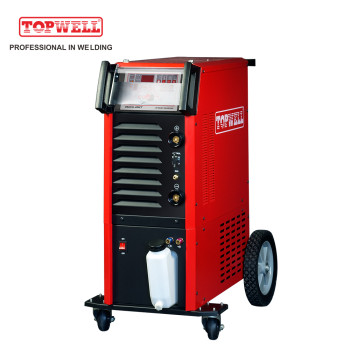

PROTIG-400CT Advanced DC TIG Welder for Heavy Industrial
- group name
- All products
- Min Order
- 1 piece
- brand name
- TOPWELL
- Nearest port for product export
- Shanghai/Ningbo Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T
- Export mode
- Have the independent export and import right
- update time
- Sat, 23 Nov 2024 04:28:27 GMT
Paramtents
Input Voltage 3PH ~ 400V ±15%
Rated Output(40℃) 100% 400A/26V
Packging & Delivery
- 75cm x36cm x71cm
-
Min Order1 piece
Briefing
The PROTIG-400CT is designed for heavy industrial usage. It is built by IGBT model
Detailed
DETAILS
Powerful output, Heavy duty for industrial,
Outstanding performance
PROTIG-400CT
Powerful output - 400A@100% Duty cycle.
Advanced Pulse control - Minimize heat input on thin materials, and provide for a faster freezing weld puddle for uphill welding on curved surfaces such as process piping. The TIG pulse also helps moderate filler metal deposition for consistent bead appearance.
High-Frequency start - Makes it easy to establish an arc under a variety of conditions.
Hot Start & Arc Force - Makes it easy to start and powerful arc in MMA welding
Advanced Pulse TIG
Conventional Pulse TIG
Typically from 0.2 to 10 PPS. Provides a heating and cooling effect on the weld puddle and can reduce distortion by lowering the average amperage. This heating and cooling effect also produces a distinct ripple pattern in the weld bead. The relationship between pulse frequency and travel speed determines the distance between the ripples. Slow pulsing can also be coordinated with filler metal addition and can increase overall control of the weld puddle.
High Frequency Pulse TIG
In excess of 40 PPS, Pulsed TIG becomes more audible than visible causing increased puddle agitation for a better as-welded microstructure. Pulsing the weld current at high speeds between a high Peak and a low Background amperage can also constrict and focus the arc. This results in maximum arc stability, increased penetration and increased travel speeds.
Pressure Pipelines
ProTIG-500CT + Cold Wire Feeder + Carriage
This system is a solution for pressure pipelines. It is 500A @ 100% Duty Cycle. With the precise arc control, it delivers deep penetration and high-quality welding seams.
SPECIFICATIONS
Machines
|
Product Name
|
ProTIG-400CT
|
|
Machines Processes
|
Stick (SMAW) TIG (GTAW) Pulsed TIG (GTAW-P) |
Product Weights & Dimensions
|
Dimensions(L*W*H)
|
960x420x900mm
|
|
Net Weight
|
70KG
|
Basic Specification
|
Input Voltage
|
3PH ~ 400V ±15%
|
|
Input Power
|
TIG: 14.39 KVA MMA: 14.21 KVA |
|
Output Range
|
TIG: 3A/10.1V~400A/26V MMA: 20A/20.8V~315A/32.6V |
|
Rated Output(40℃) 100%
|
TIG: 400A/26V MMA: 315A/32.6V |
Polarity | DC |
