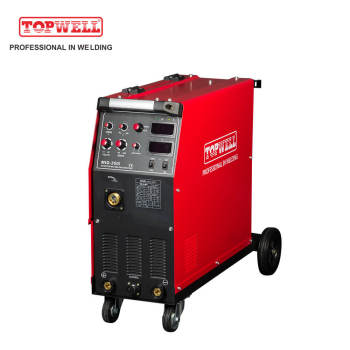

inverter mig welder 4-rolls wire feeder multi process MIG-300i welding machine
- group name
- All products
- Min Order
- 1 piece
- brand name
- TOPWELL
- model
- MIG-300i
- Nearest port for product export
- Shanghai/Ningbo Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T
- Export mode
- Have the independent export and import right
- update time
- Thu, 21 Nov 2024 20:44:24 GMT
Paramtents
Rated Input Voltage 3PH ~ 400V ±15%
MAX.Load Power Capacity 12.04KVA
Rated Output 300A/29V
Max Open Circuit Voltage 55V
Effiency 80%
Wire-feed Mechanism 4 Rollers
Wire Feeding Speed: 0~25m/min
Warranty: 1 year warranty
Dimensions: 770x250x650mm(LxWxH)
Weight: 32kg
Packging & Delivery
- 85cm x33cm x67cm
-
Min Order1 piece
Briefing
Detailed
-
MIG-300i
Compact design, heavy duty powers
-
Application:
Metal Fabrication
Maintenance and Repair
Auto Body
Light Industrial -
Processes:
MIG
Flux-Cored
Pulse MIG
Double Pulse MIG
MMA(Stick) -
Input Power: 400V, 3-Phase Amperage
Range: 10-300A
Rated Output at 40°C (104°F):
300A at29V @60% Duty Cycle
Weight: 32KG
The short-circuiting metal transfer mode
The short-circuiting metal transfer mode is the low heat input mode of metal transfer for GMAW and has higher electrode efficiencies, 93% or more. The low heat input reduces weldment distortion and makes it ideal for sheet metal thickness materials.
SPOT/STITCH MODE
Use the spot and cycle arc timer you can easily control the welding time and the stitch length during the continue spot welding jobs. Spot/Stitch mode provides a quick and effective means for spot welding mild, galvanized or stainless materials. Very useful for the car body repairs.
FOUR-ROLLERS DRIVE SYSTEMS
- 4-Rolls wire-feeder with strong feeding motor. Four-roll drive systems deliver the electrode to the welding torch. It provides a stable wire speed and is popular for industrial applications.
Lift TIG Mode
- Lift TIG Modeprovides TIG arc initiation without the use of high frequency. Touch, bump or scratch the work surface with the electrode to start the arc.It also has a good result in tig welding.
General View of Control Panel
1. Spot/Stick welding TIME 1:
on welding time adjustment knob.
2. Spot/Stick welding TIME 2:
off welding time adjustment knob.
3. Spot/stick welding mode selection knob.
4. Welding Voltage regulator.
5. Welding Current regulator.
6. Arc Force regulator.
7. Power/working pilot lamp.
8. Arc Force regulator.
9. Over-load/Over-heat Protection
or Damage pilot lamp.
10. Volmeter.
11. MMA/MIG welding mode selection.
12. 2T/4T selection.
-
-
Item No MIG-300i Rated Input Voltage 3PH ~ 400V ±15% Max. Load Power Capacity 12.04KVA Rated Duty Cycle(40℃) 60% MIG:300A/29V MMA:300A/32V 100% MIG: 250A/26.5V MMA: 250A/30V Welding Current/Voltage Range MIG: 30A/15.5V~300A/29V MMA:30A/21.2V~300A/32V Open Circuit Voltage 70~80V Power Factor 0.85 Efficiency 85% Pre-Gas Time Preset Flow-Gas Time Preset Wire-feed Mechanism 4 Rollers Wire-feed Speed Range 0~25 m/min Wire Spool Capacity 300mm (15kg) Al: 0.6~1.2 mm Dimension 770X250X650mm Weight 32KG - For Standard accessories
MIG torch:MIG-24
Electrode holder with cable 2M
Earth clamp with cable 2MFor Optional accessories
Argon gas regular
or co 2 gas regular with heater
Push-pull Troch:
QTLB-24KD/36KD
Spool gun:QLBF-200/8M
-
-
Q:Are you a factory or a trading company?
A: We are factory with more than 10 years manufacturing experience and we provide perfect OEM and after-sale service.
Q:How can I pay my order?
A: We accept T/T, Western Union, Alibaba Trade Assurance payments. For those orders less than 1000USD, we accept PayPal to pay.
Q:How about your warranty?
A: We offer 3-year product life guarantee ,and a generous 1 year warranty on al purchases that begins with the bill of lading.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Q:How can I get the quotation?
A: We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price,please send the message on trade management or call us directly
