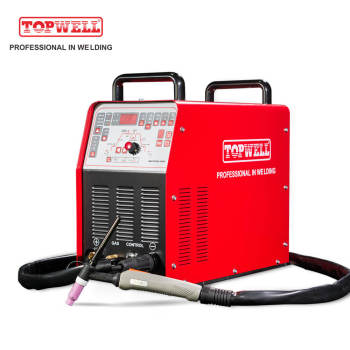

professional aluminum AC/DC igbt modular tig ac dc welder for sale MASTERTIG-250AC
- group name
- All products
- Min Order
- 1 piece
- brand name
- TOPWELL
- model
- MASTERTIG-250AC
- Nearest port for product export
- Shanghai/Ningbo Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T
- Export mode
- Have the independent export and import right
- update time
- Sat, 23 Nov 2024 17:37:08 GMT
Paramtents
Rated Input Voltage 1PH ~ 230V ±15%
Rated Output 250A/20V
Open Circuit Voltage 70V~80V
Warranty 1 year warranty
Dimensions 490x230x440mm
Weight 23KG
Packging & Delivery
- 63cm x33cm x58cm
-
Min Order1 piece
Briefing
igbt modular tig ac dc welder for sale MASTERTIG-250AC
Detailed
DETAILS
Total Solution of TIG welding
AC/DC TIG & MIX TIG
MASTERTIG-250AC
DC TIG - features the Pulse function, it precisely controls the welding arc, heat input and penetratoin.
AC TIG - with 2 kinds of AC waveshapes(square wave and sin wave), and 3 kinds of AC waveshape controls(Balance, Frequency and Amplitude).
MIX TIG- has both AC current and DC current in one duty cycle, better arc concentration and deeper penetration.
Reliable and Powerful Design - 250A@60% duty cycle, capable for workshop jobs.
Advanced Pulse Controls
The Pulsed TIG function switches the amperage from a high (peak) to a low (background) at a set rate (PPS). Pulsing can reduce heat input by lowering the average amperage, increasing control of the weld puddle, penetration and distortion.
Control Panel Description
1. Welding Process
DC TIG/AC TIG/MIX TIG/DC MMA
2. Pulser Control
3. AC Waveshape Types
Advanced Squarewave
Sin Wave
4. MIX TIG
5. AC Waveshape
AC Frequency Range 20Hz~200Hz
AC Clean Width (AC Balance) +40~-40
AC Clean Ratio (ACBias) % +30~-50
AC Frequency control
Controls the width of the arc cone. Increasing the AC Frequency provides a more focused arc with increased directional control.
Note: Decreasing the AC Frequency softens the arc and broadens the weld puddle for a wider weld bead.
AC Balance Control
Controls arc cleaning action. Adjusting the % EN of the AC wave controls the width of the etching zone surrounding the weld.
Note: Set the AC Balance control for adequate arc cleaning action at the sides and in front of the weld puddle. AC Balance should be fine tuned according to how heavy or thick the oxides are.
Amplitude Control
Adjusts the ratio of EN to EP amperage to precisely control heat input to the work and the electrode.
Note: EN amperage controls the level of penetration, while EP amperage dramatically effects the arc cleaning action along with the AC Balance control.
Unique MIX TIG
MIX TIG is TOPWELL's unique technology, it contains AC current and DC current in one duty cycle.That keeps the advantages and reduces disadvantages from each other. Using the MIX TIG technology gets an excellent arc concentration and can be carried out the excellent welding performance, especially for thick plates.
· Nice weld seam, Excellent arc concentration
· Deeper penetration
· Substantially reduce the tungsten consumption
VIDEO
SPECIFICATIONS
Machines
|
Product Name
|
MasterTIG-250AC
|
|
Machines Processes
|
Stick (SMAW)
TIG (GMAW) Pulsed TIG (GTAW-P) |
Product Weights & Dimensions
|
Dimensions(L*W*H)
|
490x230x440mm
|
|
Net Weight
|
23kg
|
Basic Specification
|
Input Voltage
|
1PH ~ 230V ±15%/3PH ~ 380V ±15%
|
|
Input Power
|
TIG: 6.3KVA MMA: 7.1KVA |
|
Output Range
|
TIG: 5A/10.2V~250A/20V MMA: 20A/20.8V~200A/28V |
|
Rated Output(40℃) 100%
|
TIG: 250A/20V MMA: 200A/28V |
Polarity | AC/DC |
