CHINA double pulse mig TIG welding machine PROMIG 360SYN DPulse SWF 380V
- group name
- All products
- Min Order
- 1 piece
- brand name
- TOPWELL
- model
- PROMIG 360SYN DPulse SWF
- Nearest port for product export
- Shanghai/Ningbo Port
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T
- Export mode
- Have the independent export and import right
- update time
- Thu, 21 Nov 2024 17:50:43 GMT
Paramtents
Input Voltage 3PH ~ 400V ±15%
Rated Output(40℃) 60% 360A/32V
Features High Speed Pulse, Ultra Low Spatters, Hybrid Pulse
Packging & Delivery
- 69cm x31cm x62cm
-
Min Order1 piece
Briefing
Advanced MIG Solutions For Mobile Welding Jobs
Detailed
DETAILS
Advanced MIG Solutions For Mobile Welding Jobs

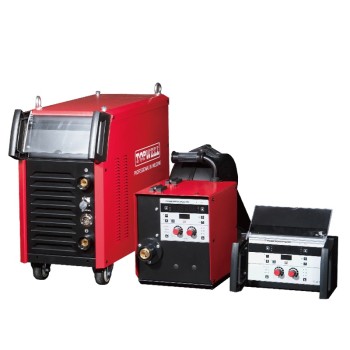

PROMIG 360SYN DPulse SWF
Synergy Control - Set weld procedures with one control. Just easily takes 3 Steps to achieve weld perfection.
Improved Operation Process & Controls - Initial Arc control, Burn Back control, Arc Length control, Dynamic control, these make an easier operation and handling for welding.
High Speed Pulse MIG (HSP) - The deposition rate can increase 25~48% for M.S. by comparing with MAG process.
Separated Wire Feeder & Remote Control - Portable & Convinient for long distance work.
Advanced MIG Processes Optional - Advanced ULS, HSA, HPC, HSS package for Robotic welding available.
Robot Ready - Optional package for robot interface by Analog connectors or Digital ports including EtherNetlP, DeviceNet, CAN, CANOPEN, RJ485 etc.
HSP - High Speed Pulse Technology
-Specifically designed for demanding workshop use, the deposition rate can increase 25~48 % for various materials, whether used in manufacturing thick materials or sheet metal.
-The High-Speed Pulse(HSP) process enables you to save time, money, and energy compared to traditional pulse welding. This process is ready to raise pulse welding to a whole new level!
-In general, One pulse melt one droplet, but we increase the submission of these droplets by TOPWELL’s New High-Speed pulse process.The transition will be faster, narrower HAZ zone and deeper penetration!
Get better welding seam
Less heat input, less spatters, less rework.
Get higher welding strength
Deeper penetration, no undercut defects, higher strength.
HPC - Hybrid Pulse Control
The key is synergetic waveform controlled welding process control variants applied in MIG welding which are Pulse(spray arc) and short-circuit transfer types in one duty cycle. It delivers exceptional directional stability, deep penetration and free-spatters.
HPC Vertical-up Welding Process
HDP - High-speed Double Pulse
HDP is the High-Speed Double Pulse. The high and low pulse phases of the double pulse work with the High Speed Pulse process, the deposition rate is increased by up to 30%, the welding productivity is significantly improved than a standard double pulse. The professional welding curve for excellent control of heating and cooling phases, ensures precise energy input, low spatter, low distortion and a beautiful TIG-like welding appearance. HDP is particularly suitable for medium to thick-walled welding, especially for Aluminum and Steel applications.
HSA - High Speed Spray Arc
The perfect combination of a highly concentrated and extremely stable arc with high density. HSA delivers deeper penetration, narrower heating zone, allows smaller opening angles for multi-layer welding, significantly improves the welding speed up to 30% faster than conventional MIG-MAG welding. It makes welding more efficient and more economical.
MDP - Micro Double Process
MDP is Micro Double Process, ultra-precise on the synergy Pulse wave-form controlled process-control, freely adjust the weld seam chevrons from coarse to fine. The key is that when the high and low pulses alternate, there is no droplet formation in the low pulse phase. The advantage of MDP are precise energy input, low distortion, perfect TIG-like welding appearance easily produced by anyone, and the welding productivity can up to twice as quick as the conventional TIG. MDP is particularly suitable for thin to medium-walled (1-8mm) Aluminum, Steel, and CrNi applications, like frames, tables, beds, and furniture structures.
●Standard ๐ Optional
Simple Operation
3 Steps to achieve weld perfection
1. Select operation mode
2. Select Job-list No.
3. Adjust welding current
(always the perfect setting by the synergic function using the material thickness)
Synergy Control With Job-list
The Job-lists display is easily and intuitively controlled through its graphical user interface.We assembled the perfect welding curve in every Job-No. for highly efficient multi-process welding of carbon steels and stainless steel and aluminum alloys. Operation is easier than ever before.
Improved Operation Process & Controls
Arc Length control
With the arc length control, no matter the changing distance between the torch and the workpiece, or the welding voltage, the arc length is kept constant, and the seam quality and appearance remain unchanged.
Dynamic control
The arc can easily be adjusted depending on the workpiece and positions as well as to the individual preferences of the welder through Dynamic Control. Changing the arc to soft or hard or anywhere in between, increases the reliability for a good root formation and side fusion even with a non-ideal position of the torch.
Improved Operation Process & Controls
HSS is the high speed spot welding, which is perfectly combining the welding process, arc physics, high dynamic power response and powerful motor control technology, short in arc ignition time and arc ending time, a welding spool can be formed swiftly. A spot welding cycle is quickly completed, cycle over and over, by adjusting the time gap with the robot to get the fish scale you wish, weld seam is clear and beautiful.
VIDEO
SPECIFICATIONS
Machines
|
Product Name
|
PROMIG 360SYN DPulse SWF
|
|
Machines Processes
|
SMAW FCAW GMAW GMAW-P GMAW-HDP GMAW-HSP |
|
Wire Feeder
|
4-Rollers
|
Product Weights & Dimensions
|
Dimensions(L*W*H)：Machine
|
685*305*620mm
|
Net Weight : Machine | 47KG |
Basic Specification
|
Mains voltage(V)
|
3PH~400V±15%（50/60Hz）
|
|
Max.Load Power Capacity
|
14.88KVA
|
|
Rated Duty cycle at 40℃(105℉): 60%
|
360A/32V |
|
Rated Duty cycle at 40℃(105℉): 100%
|
250A/26.5V |
Open Circuit Voltage | 70V~80V |
Power Factor | 0.87 |
Efficiency | 89% |
Wire feed unit | 4 rollers |
Wire feed speed rang | 0~25m/min |
Wire Spool Capacity | 300mm(15kg) |
Wires φ (mm): Fe | 0.8~1.2mm |
Wires φ (mm): Alu | 0.8~1.2mm |
Wires φ (mm): Flux-cored | 0.8~1.2mm |
